Product Details:
Payment & Shipping Terms:
|
| TE Part #: | 776437-1 | Sealed/Unsealed: | Sealed |
|---|---|---|---|
| Material: | Pbt Gf15 | Number Of Positions: | 12 Pin |
| Series: | AMPSEAL 16 HOUSING | Connector System: | Wire-to-Wire |
| Mating Pin Diameter : | 1.5 mm [ .059 in ] | Centerline (Pitch): | 4.5 mm [ .177 in ] |
| Application: | Fit For Carter Excavator | Connector Style : | Housing For Female Terminals |
| Highlight: | tyco superseal connectors,tyco circular connectors |
||

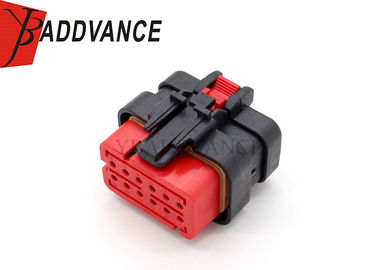

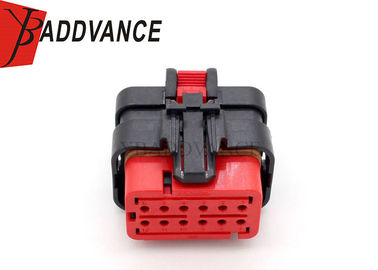

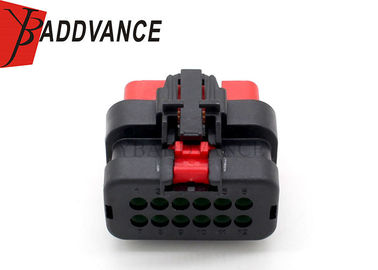

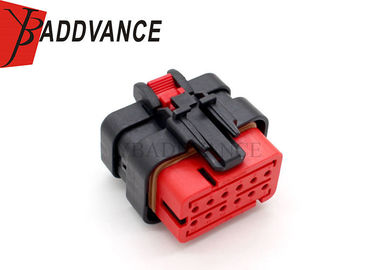

TE Connectivity, AMPSEAL 16 Series 4.5MM 12 Way Female Cable Mount Connector 776437-1
Product Description
TE Connectivity, AMPSEAL 16 Series 4.5MM 12 Way Female Cable Mount Connector
Size:
Width : 36.8 mm [ 1.449 in ]
Height : 31.5 mm [ 1.24 in ]
Length : 38.33 mm [ 1.509 in ]
AMPSEAL 16 housings are environmentally sealed wire-to-wire and wire-to-device connectors that accept the Heavy Duty Stamped & Formed
(HDSF) size 16 contacts rated up to 13 amps each. They feature an integrated latch for mating and are available in 2, 3, 4, 6, 8, and 12-way
arrangements.
1 x Female Connector Housing
12 x Female Terminal
12 x Rubber seal
Specification
| Keywords | AMP Connectors |
| TE Number | 776437-1 |
| Type | High quality Original brand |
| Male/Female | female |
| Material | PBT GF15 |
| Connector Style | Housing for female terminals |
| Mating Pin Diameter | 1.5 mm [ .059 in ] |
| Centerline (Pitch) | 4.5 mm [ .177 in ] |
| Number of Rows | 1 Row |
| Connector System | Wire-to-Wire |
| Voltage Rating | 250 VDC |
| Color | Black |
| Operating Temperature range | -40℃~125℃ |
| Pitch | 4.5 mm |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
More AMP connector
| Amp Tyco Connector | Description |
| 15476346 | GT 150 Series 20 pin female |
| 776164-4 | 35 pin female Blue |
| 776164-3 | 35 pin female Grey |
| 776164-2 | 35 pin female White |
| 776164-1 | 35 pin female Black |
| 173090-2 | 2 pin female |
| 1544978-1 | 2 pin female |
| BC7014-3.5-21 | 1 pin 3.5 Series EV1 Female Fuel Injector Connector |
| 7-1866487-1 | 34 Pin Female Sealed ECU Connector Wire Loom A |
