Product Details:
Payment & Shipping Terms:
|
| Way: | 2 Way | P/N: | BC7666 |
|---|---|---|---|
| Color: | Black | Type: | Wire Harness |
| Warranty: | 1 Year | HS Code: | 8536909000 |
| Gender: | Female To Male | Martial: | PBT/PA66 |
| Feature: | With Wire 11CM | Standard: | OEM Standard |
| Highlight: | automotive wiring harness,automotive wire connectors,car wiring harness |
||

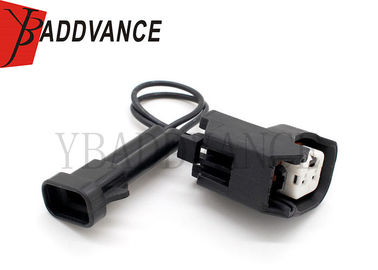

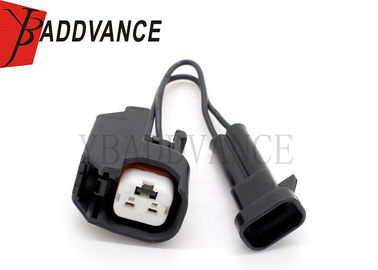

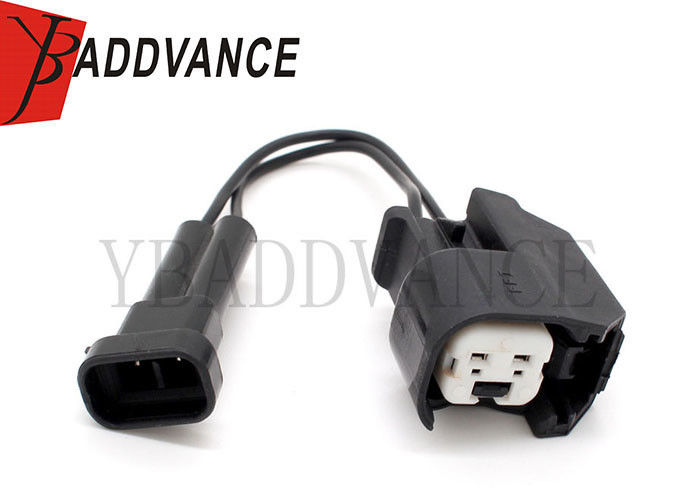

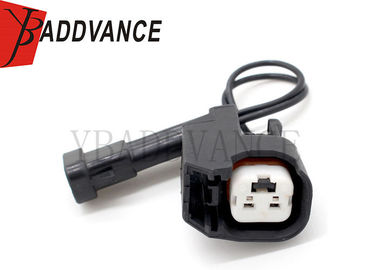

EV6/EV14 Female USCAR To Male D/elphi Pnp Adapters Wiring Harness
Description
EV6/EV14 Female USCAR To Male D/elphi Pnp Adapters Wiring Harness
Number of Row : 1 Row
Number of Pins: 2 Position
Truck GM Mini Delphi to USCAR Type Connector Adaptor. This adapter allows GM Gen III and Gen IV owners to switch to the car LS2/LS3/LS7 injectors with the EV6 USCAR injector connection
An easy way to use OBD 1 or RC style fuel injectors in any '96 and Up Honda and Acura!
Literally, both ends plug and play. Installation is minutes! These work in OBD2: Integra's / Prelude's / RSX's / S2000's. Pretty much ANY 96-UP HONDA
Works with any Honda OBD 1, most RC, Precision, Ford, etc. aftermarket injectors
Many high performance fuel injectors use the EV1 connector including Bosch, Ford, RC, Precision, Delphi Multecs and more.
If planning on using the OEM Honda OBD-1 injectors, you will need to trim the ridges in the corners of the injectors. The other common injectors are plug and play.
Specification
|
Item name |
EV6/EV14 Female USCAR To Male D/elphi Pnp Adapters Wiring Harness |
| P/N | BC7666 |
|
Wire Size |
18-22AWG |
|
Wire Length |
11 CM |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| words |
2 pin Sealed Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | For Toyota, Mazda, Subaru, Mitsubishi, Hyundai, Nissan |
Related Products
| Products | Description | P/N |
| wire harness | EV1 Bosh Jetronic (female) to EV6 US CAR (male) | BC7040 |
| wire harness | OBD2 to OBD1 EV1 | BC7076 |
| wire harness | BD2 to EV1 EV14 | BC70426 |
| wire harness | EV1 OBD2 To OBD1 Male Female | BC7076 |
| wire harness | 2 Pin Bosh OBD2 Male To Female | BC7428 |
| wire harness | 6 Pin Denso Male To VDO Female | BC7489 |
| wire harness | EV1 Female to Sumitomo (Denso) Male | BC7043 |
| wire harness | HON2 OBD2 (female) to Denso Male | BC7802 |
| wire harness | SSD 050 Series 3 Pin Male Female | BC71132P |
| wire harness | USCAR EV6 Female To OBD1 Male | BC7809 |
