Product Details:
Payment & Shipping Terms:
|
| Original Number: | 6473711-1 AND 1473712-1 | Number Of Positions: | 26 Pin |
|---|---|---|---|
| Male/Female: | Female+Male | Sealed/Unsealed: | Sealed |
| Color: | Black | HS CODE: | 8536909000 |
| Warranty: | One Year | Gross Weight: | 5kgs/100pcs |
| Application: | For Japanese Car | STYLE: | Tyco AMP Connectors |
| Highlight: | tyco superseal connectors,tyco circular connectors |
||

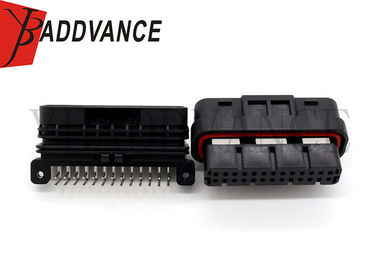

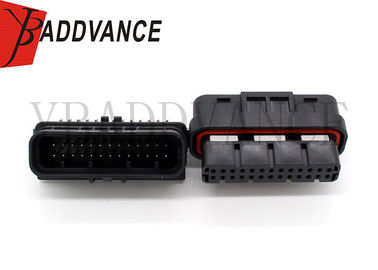

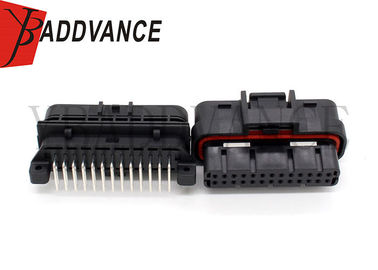

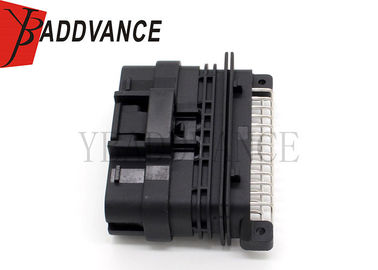

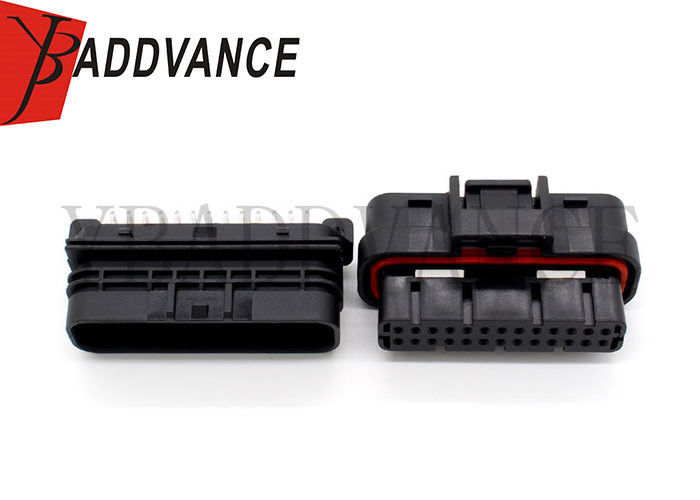

Tyco AMP 26 Pin Connector Waterproof Male Female 6473711-1 AND 1473712-1
Specification
| Number of Positions | 26 Pin |
| Product Name | 26 Pin tyco AMP Connector |
| Original number | 6473711-1 AND 1473712-1 |
| Material | Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze. |
| Color | Black |
| Sealed/Unsealed | Sealed |
| Male/Female | Female+male |
| Quality Control | All goods will be 100% inspected before shipment |
| MOQ | 100 pcs |
| Operating Temperature range | -40℃~120℃ |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Wire Size | 16-22AWG |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
Tyco AMP 26 Pin Connector Waterproof Male Female 6473711-1 AND 1473712-1
This part come with the following types:
Connector: black female and male connector
Termination Style:Crimp
Tradename: CMC
Type: adapter
Included: Seals and terminal
Application:For Japanese Car
