Xi'An YingBao Auto Parts Co.,Ltd
-------------------------- Professional Supplier
Product Details:
Payment & Shipping Terms:
|
| Reference Part Number: | PT2631 | Application: | Fit For GM |
|---|---|---|---|
| Number Of Position: | 6 Pin | Color: | Black |
| Included: | Wire Seals And Terminals | Sealed/Unsealed: | Sealed |
| Tyco P/N: | 6-929265-2 | Number Of Rows: | 1 Row |
| Martial: | PBT/PA66 | HS Code: | 8536909000 |
| Highlight: | amp automotive connectors,amp junior power timer connector |
||

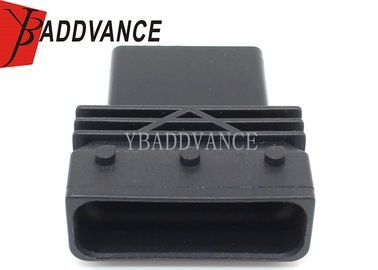

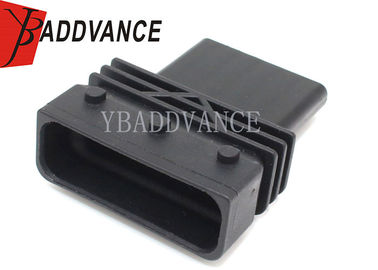

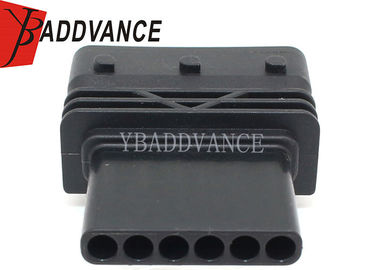

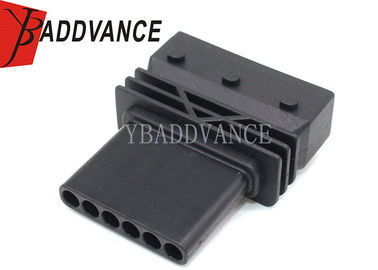

6 Pin Sealed Accelerator Pedal Position Sensor Connector 6-929265-2 For GM PT2631
Description
This kinds of 6 Pin male connector is made in YBADDVANCE and it's GM-recommended replacement part
for your GM vehicle’s original factory component. The connector is come with all kits together.
1 X Black Male Connector Housing
6 X Wire Seals
6 X Crimp Terminals
Specification
|
Keywords |
Accelerator Pedal Position Sensor Connector |
| P/N | PT2631/6-929265-2 |
|
Wire Gauge |
18-22AWG |
| Product Dimensions | 10.1 x 4.6 x 0.9 inches |
| Gross Weight/KGS | 1.2KGS/100PCS |
| Gender | Male |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Including |
6 pcs wire seals + 6 pcs crimp terminals+1 pcs housing |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Number of hole | 6 holes |
| Color | Black |
| Warranty | 1 year |
| Application | Fit For GM Sensors |
Product Picture Details
