Product Details:
Payment & Shipping Terms:
|
| Family: | RH Connectors | Part Number: | 7283-8850-30 |
|---|---|---|---|
| Number Of Poles: | 6 | Tab Width Mm(inches): | 0.64(025) |
| Martial: | PBT | Application: | For Nissan |
| Gender: | Female | Color: | Black |
| Number Of Contact: | 6 | Number Of Rows: | 1 |
| Highlight: | 2 pin sealed connector,rh connector |
||

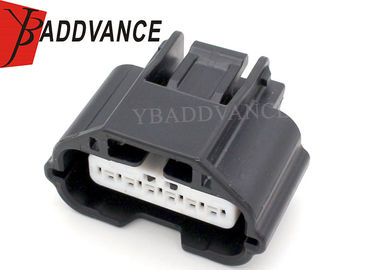

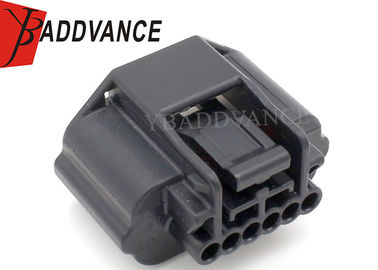

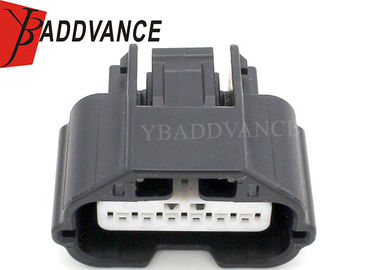

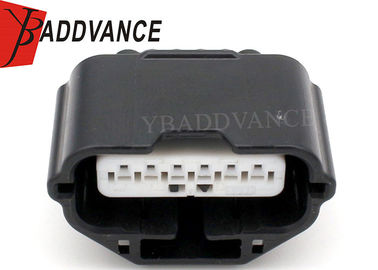

6-Way 6 Pin Female RH Connectors For Nissan Mass Air Flow Meter Sensor 7283-8850-30
Description
6 Way female connector features compact size sealed (water proof) connector with tab width of male terminal 0.64mm (.025inches) and covering wire size 0.3 to 0.85mm2.
The housing has internal lances and front holders for assuring terminal position.
Terminal has a tangle less concept with clean body and can be used for HS connectors.
Available in connection ways "wire to wire" and "wire to devices" applications.
This connector is fit for nissan MAF sensors and from YBADDVANCE brands.
What's included:
1 X Connector Housing
1 X White Lock
6 X Female Terminals
6 X Brown Wire seals
Specification
|
Item name |
RH connectors housing 6 Pin female |
| Part Number | 7283-8850-30 |
|
Wire Size |
20-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Connection Type |
Wire to Wire Wire to Board Wire to Device |
|
Number of Poles |
6 Pin |
| Key words |
6 Pin female connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| Number of Rows | 1 Row |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
Product Picture Details
