Product Details:
Payment & Shipping Terms:
|
| Martial: | PBT/PA66 | P/N: | BC7568 |
|---|---|---|---|
| Gender: | Female | Way: | 2 Hole |
| HS Code: | 8536909000 | Type: | Sealed Automotive Connectors |
| Highlight: | fuel injector plug,diesel injector connector |
||

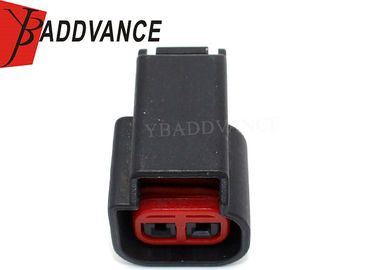

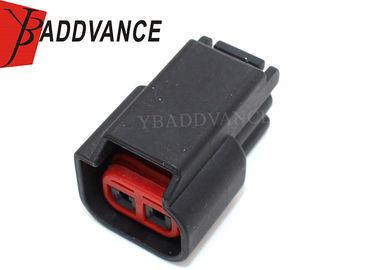

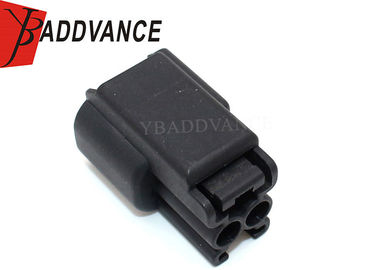

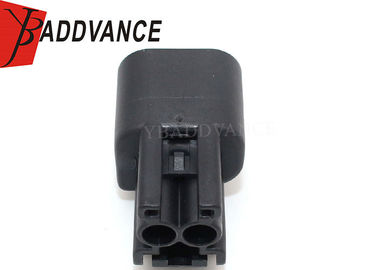

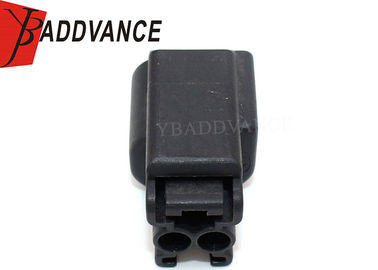

2 Pin Female Electrical Sealed Fuel Injector Connector Fit For GM
Description
2 Pin Female Electrical Sealed Fuel Injector Connector Fit For GM
It is the fuel injector for GM
Car type:Japan/European/US car;
Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber
It come with : 1 Housing Connetor +2 Terminals +2 Wire Seal+1 Lock
Good quality with reasonable price ,if you need more , please contact us to get the cheaper price
12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused).
Defective items MUST BE reported and returned within the warranty period
Specification
|
Item name |
2 Pin Female Electrical Sealed Fuel Injector Connector Fit For GM |
| P/N | BC7568 |
|
Wire Size |
18-22AWG |
|
Operating Temperature range |
-40℃~125℃ |
|
Insulation resistance |
100M Min. |
|
MOQ |
100 units/lot |
| Key words |
2 pin fuel injector Connector |
| Design Tooling |
Sending us samples or drawing to design it |
| Delivery Time |
About 5-8 work days |
| Sealed/Unsealed |
sealed |
|
Leak current |
Initial50kPa Min.after durability tests30kPa Min. |
| The number of hole | 2 way |
| Color | Black |
| Warranty | 1 year |
| Application | Automoive Motorcycles |
